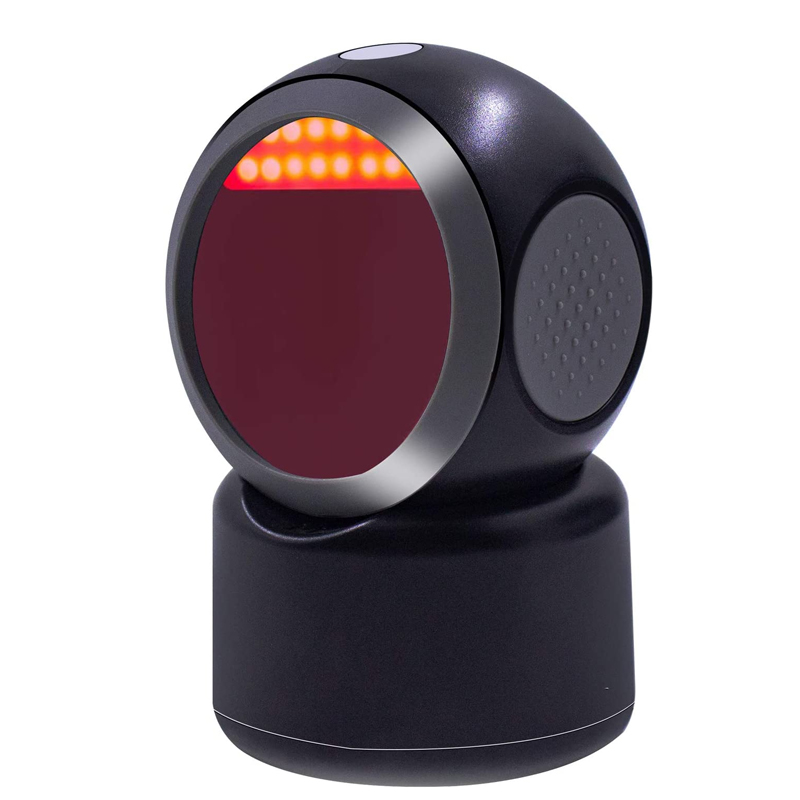

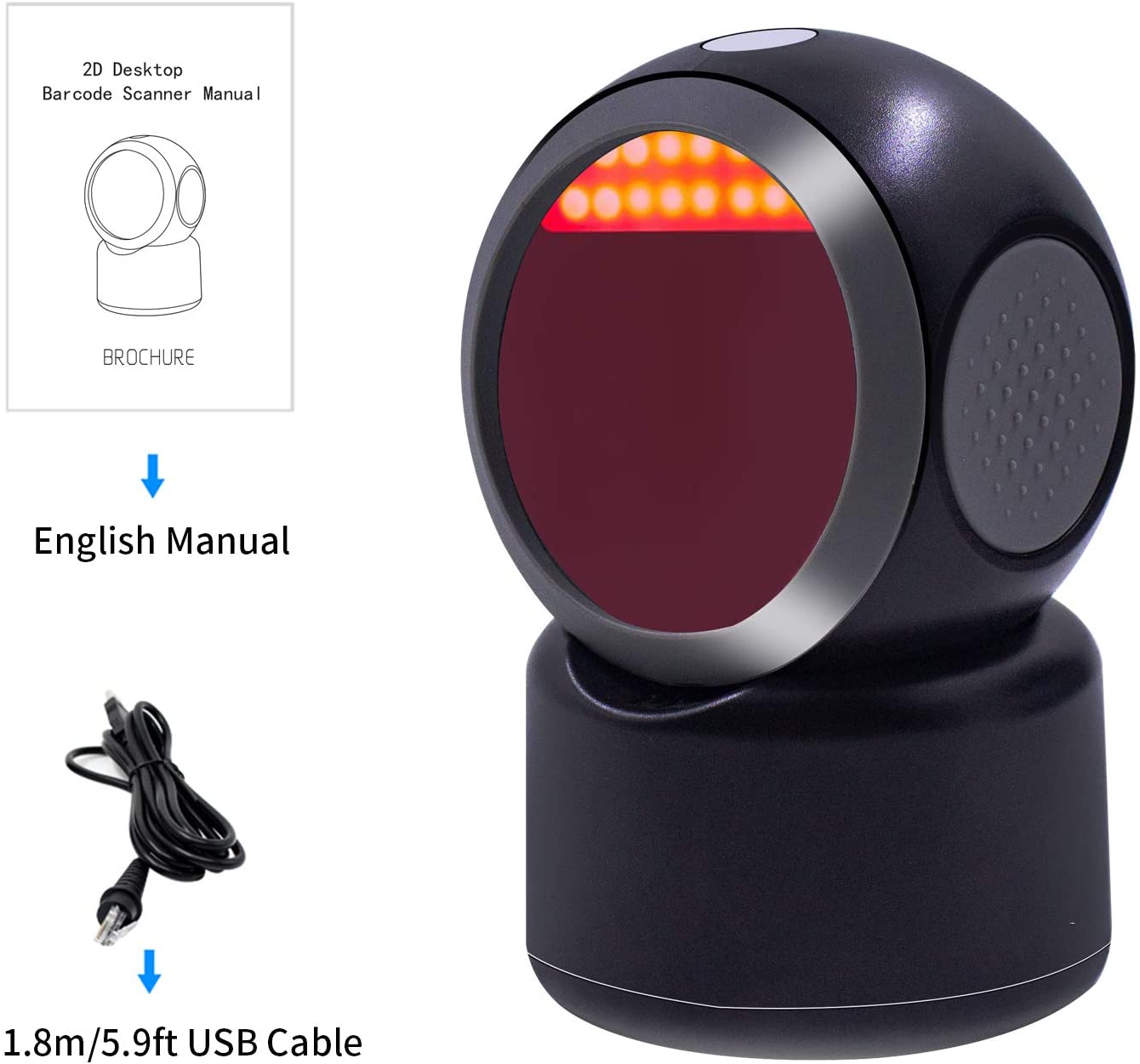

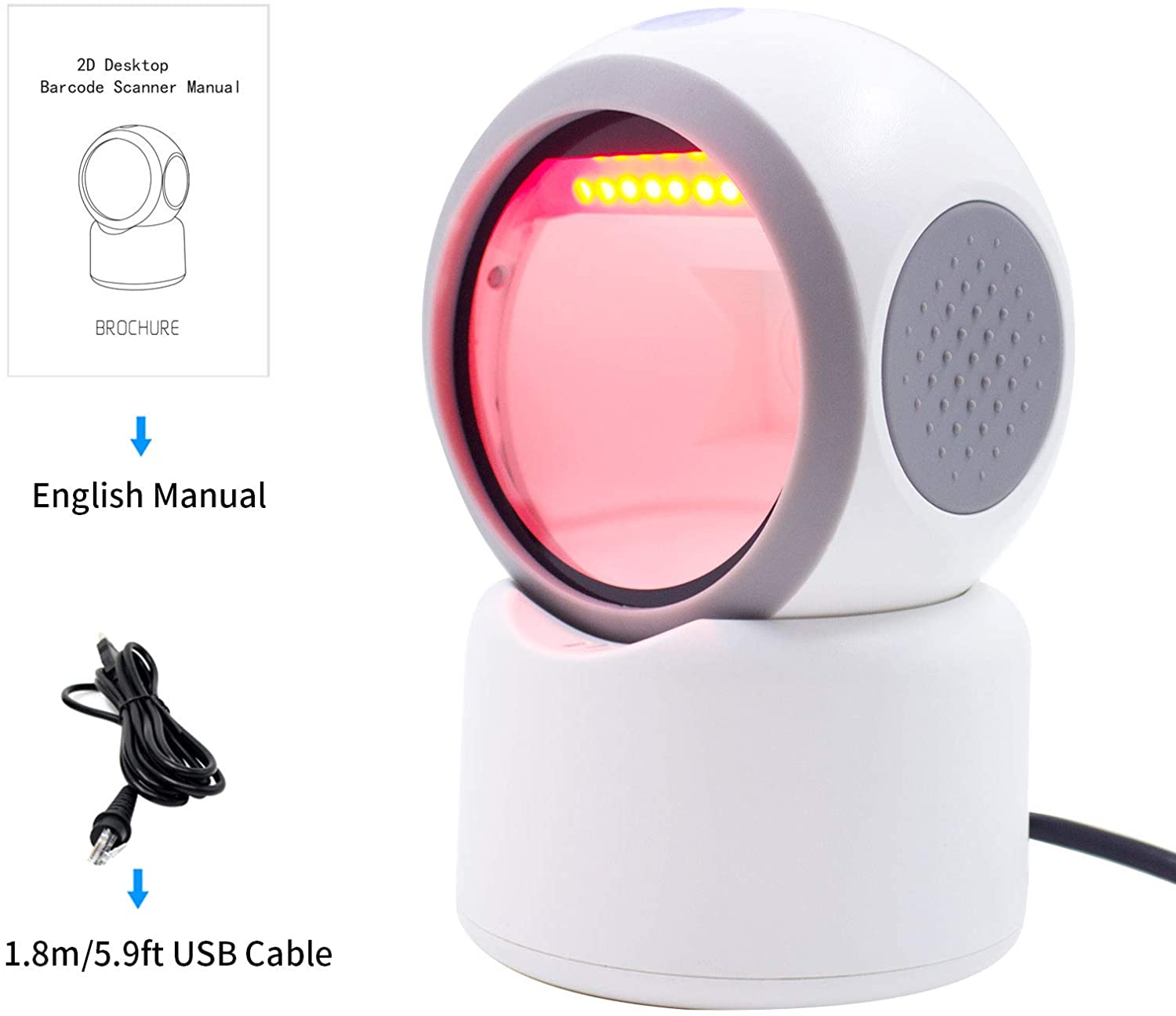

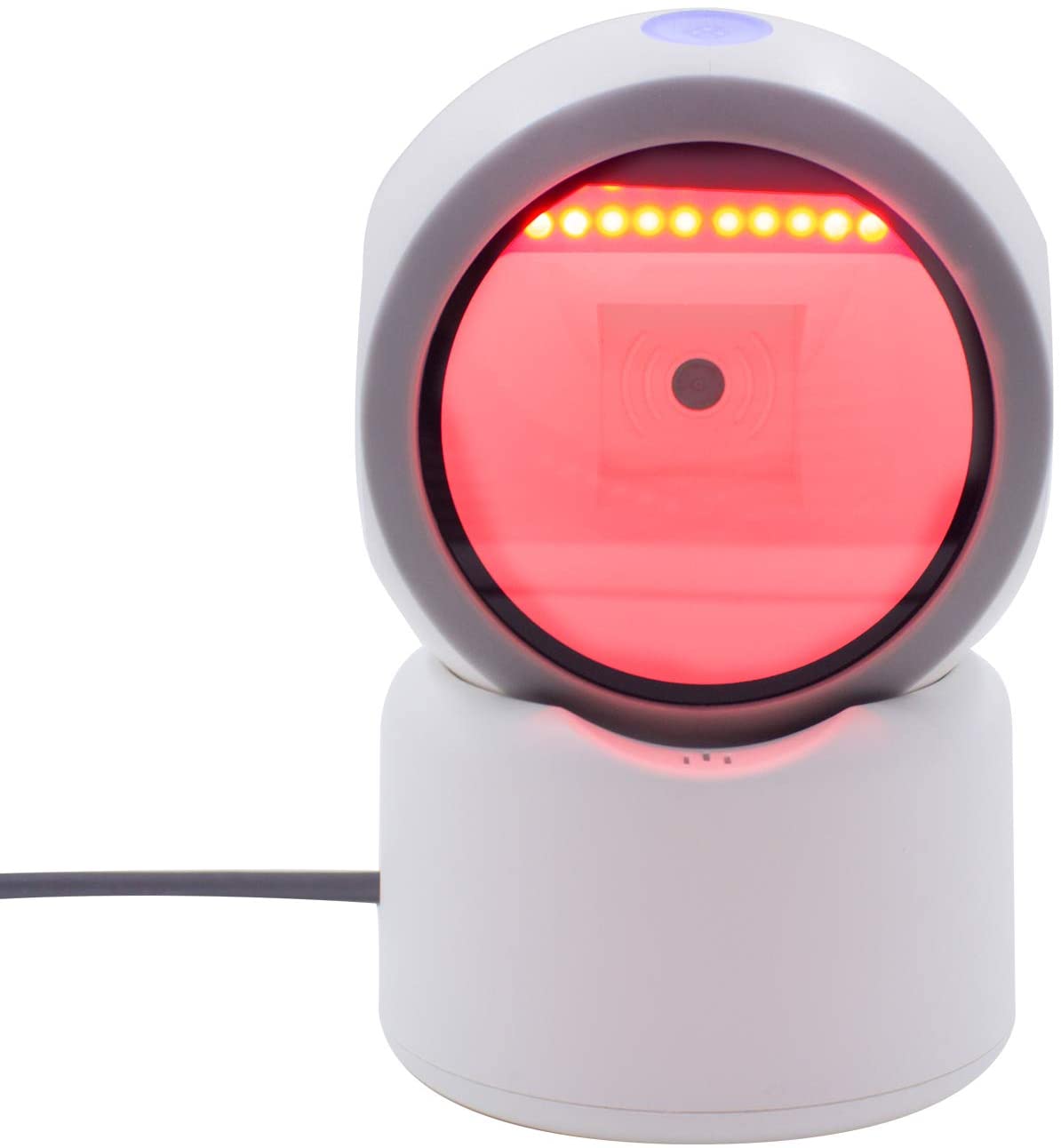

XZH-3300 Handsfree 2D Barcode Scanner

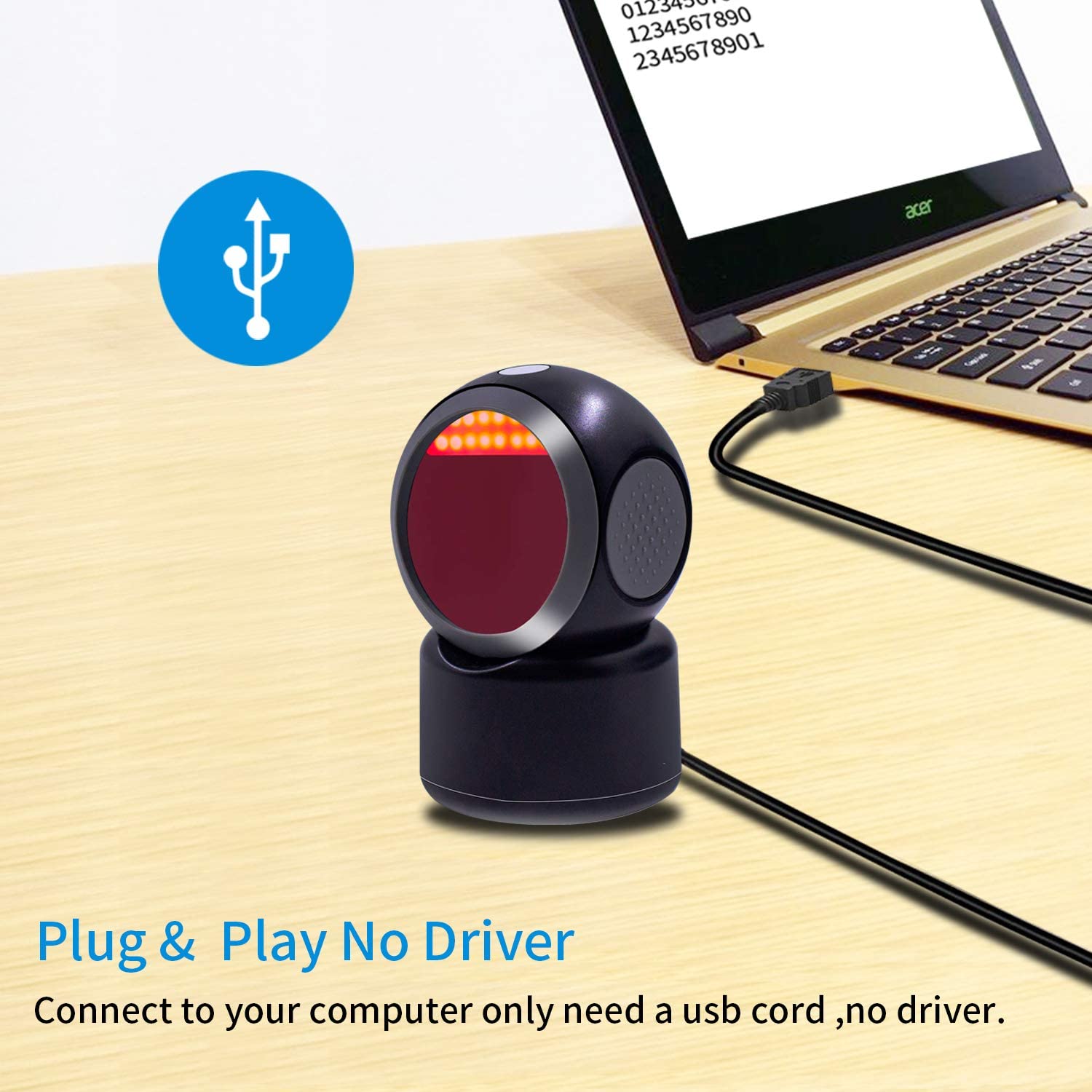

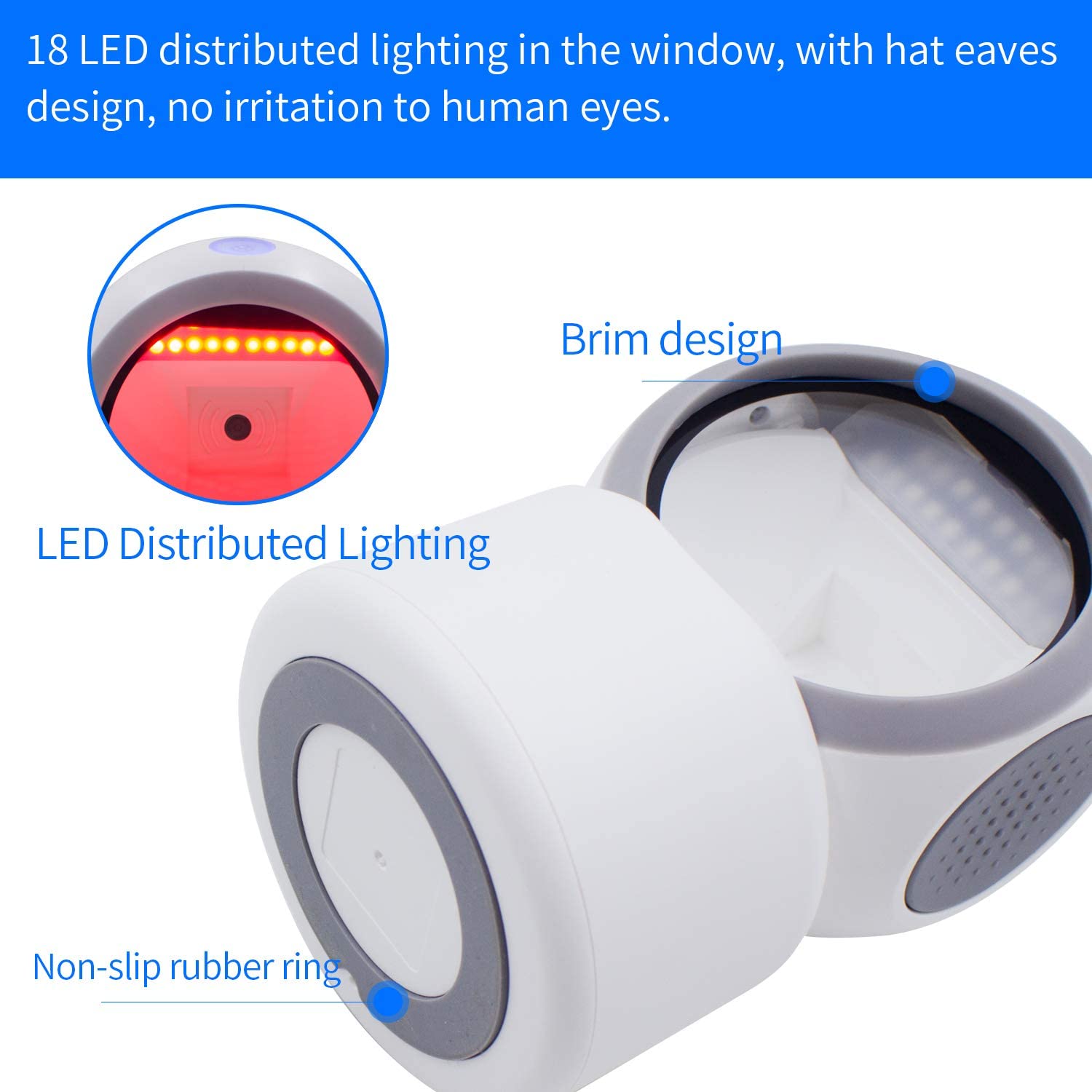

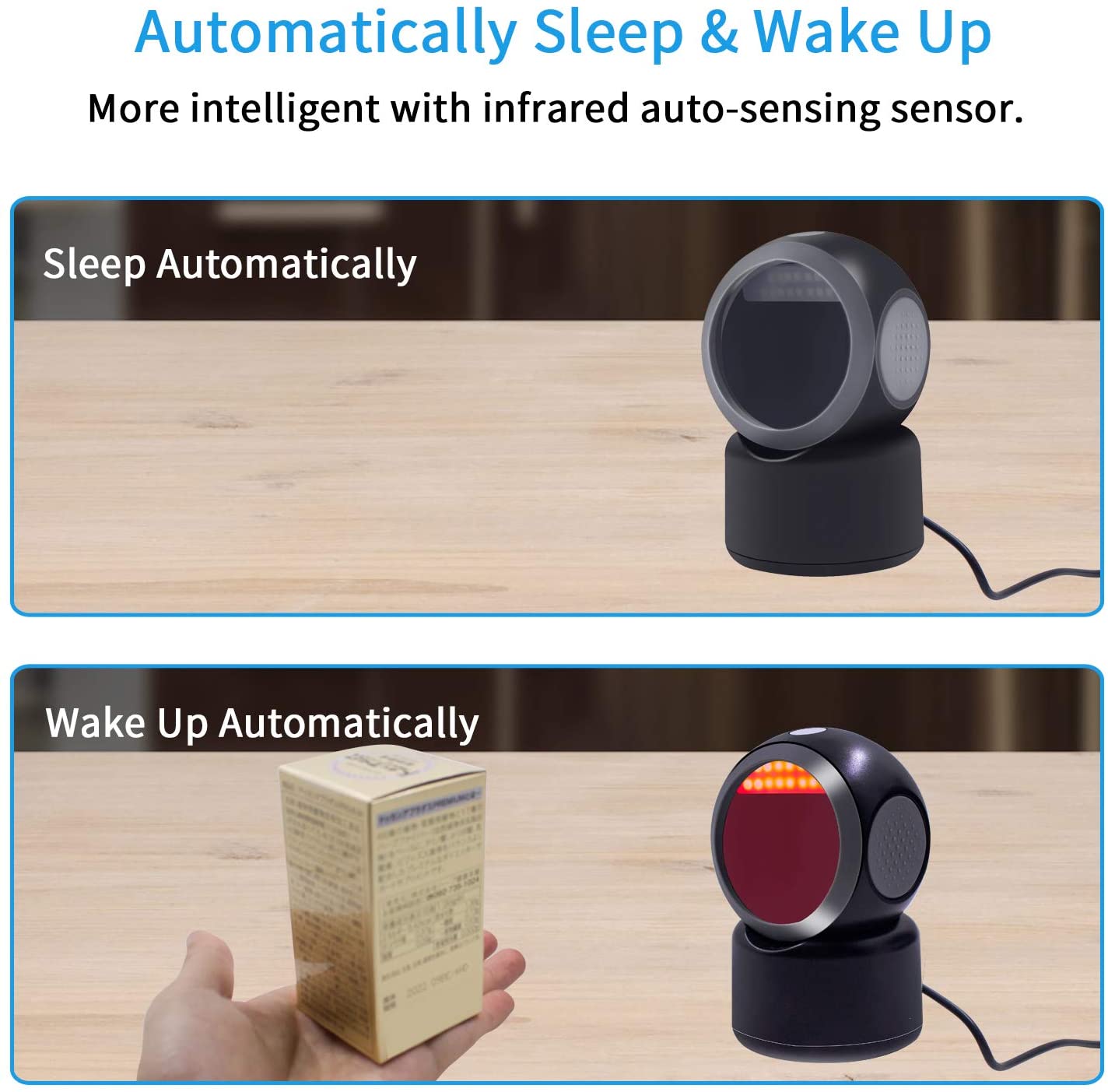

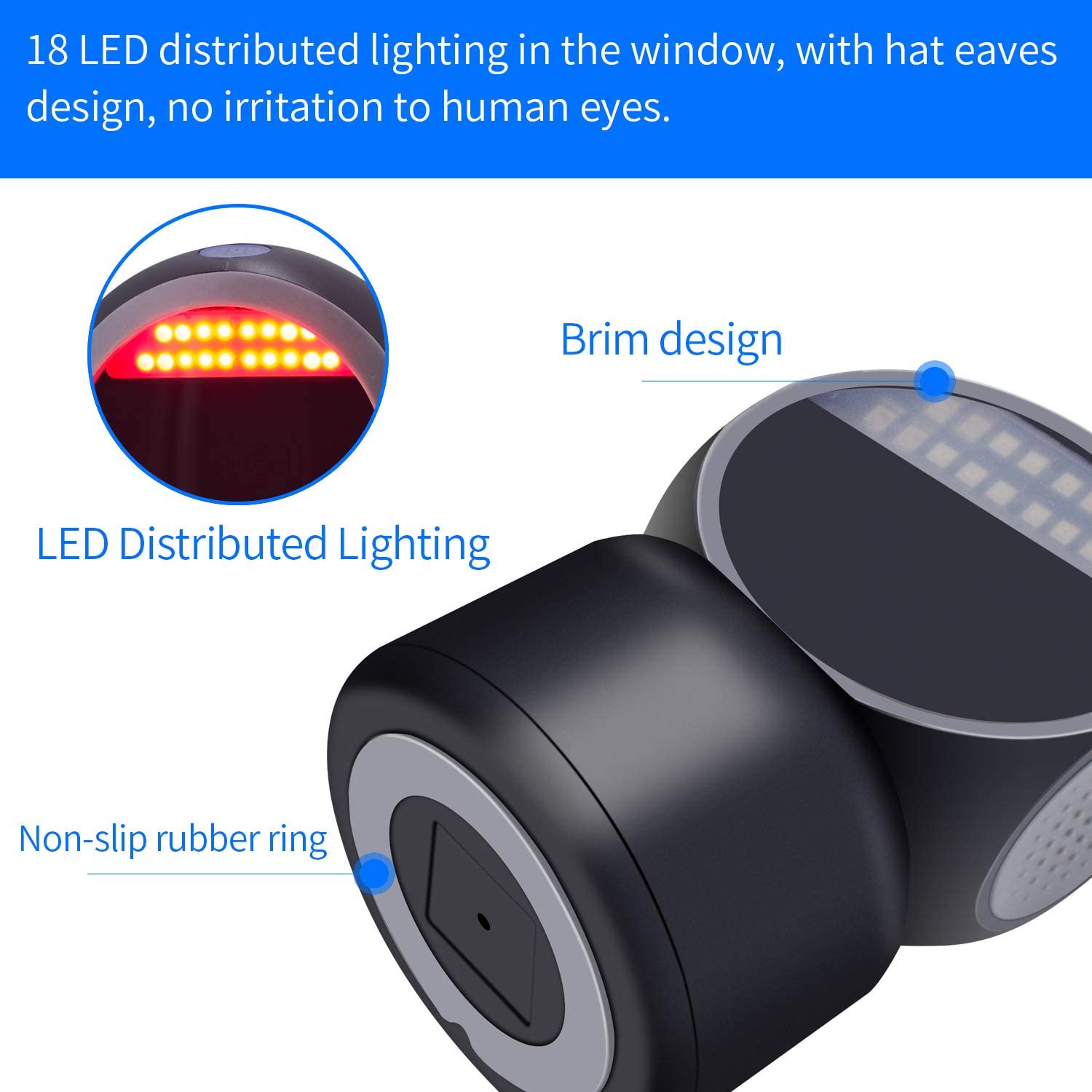

| Weight | 292g(Only Scanner) | | Weight | 362g(With USB cable) | | Size | 84*125*154mm | | Material | ABS+PC | | Color | Black & White | | Interfaces | USB/RS232 | | USB Cable Length | 2 meters | | Packing size | 160mm*95mm*112mm | | Sensor | 640*480 Sensor | | Light Source | 624nm Red LED Light | | Scan Mode | Trigger/Auto-sense/Continuous | | Scan Angle | Roll:360°,Pitch:±55°,Yaw:±55° | | Working Voltage | 5V DC±5% | | Working Current | 140mA | | Print Contrast | ≥30% | | Drop Test | 1.5meters,100times | | Compatible System | Mac/Windows/Android | | Decode Ability | 1D: Code39(Code 32),Code128,Code,UPC/EAN/JAN 93,,Interleaved 2 of 5,Codabar,Code 11
Matrix 2 of 5,Industrial 25,GS1Databar
China Post(Hong Kong 2 of 5), NEC 2 of 5,,MSI Plessey,(RSS)Korea Post,Trioptic code39, GS1 Composite Code,Telepen
2D:QR Code, Data Matrix, PDF417
MicroPDF417, Aztec Code, Codablock, MaxiCode,汉信(Chinese Sensible Code) | |
|
|
|
|
|
|
|
|
|
| Depth of field | 13mil UPC(25-210mm),6.7mil PDF417(25-120mm) | | 13mil Code39(95-160mm),10mil PDF417(25-190mm) | | 5mil Code39(50-80mm),10mil DataMatrix(20-70mm) | | 20mil Code39(100-310mm),20mil QR(30-210mm) | | Operate Temperature | -20℃~+50℃ | | Storage Temperature | -40℃~+70℃ | | Humidity | 5% to 95%(Non-Condensing) | | Carton Size | 49.5*47.5*37.5cm | | Carton Weight | 17kg |
|
